GNSS Receiver for Property Boundary Finding
Centimetre RTK Accuracy — England & Wales
Your smartphone GPS gets you within 1–3 metres. The DataGNSS NANO Helix RTK narrows that to 1–3 centimetres — use it with BoundaryFinder on a desktop, or with OsmAnd / SW Maps on your phone.
Our Homeowner GNSS Solution
This is a homeowner tool, not a professional survey instrument. The DataGNSS NANO Helix RTK costs around £80–£150. A professional GNSS survey instrument used by a chartered boundary surveyor typically costs £3,000–£15,000 and is used as part of a professional surveying service supported by calibration procedures, professional indemnity insurance, and expert interpretation. These are fundamentally different tools for different purposes.
This page is for homeowners, landlords, and landowners who want to walk their registered boundary for personal understanding, fence planning, or general land management — not for resolving legal disputes or producing court-admissible evidence.
Have a legal boundary dispute or encroachment? A consumer GPS device cannot replace a chartered surveyor (RICS). Find a qualified boundary surveyor →
DataGNSS NANO Helix RTK Receiver — centimetre-level RTK with Bluetooth, works with iOS and Android.
DataGNSS NANO Helix RTK Receiver
| RTK Accuracy | 1.0 cm + 1 ppm (H) / 2.0 cm + 1 ppm (V) |
| Standalone | Sub-metre (SBAS <1.0 m CEP) |
| Frequencies | L1 + L2 + L5 (multi-band) |
| Constellations | GPS, QZSS, BeiDou, Galileo, GLONASS, NavIC, SBAS |
| RTK convergence | <10 seconds |
| Update rate | 10 Hz |
| Connection | Bluetooth BLE (iOS & Android) + USB serial |
| Protocol | NMEA-0183, RTCM 3.x, raw measurements (PPK) |
| Power | USB-C powered — no internal battery (use power bank) |
| Weight | 5 g (receiver only) |
| Kit includes | NANO RTK receiver + Smart Helix antenna + USB-C cable + OTG cable |
Why we recommend this device: We purchased the DataGNSS NANO Helix RTK with our own money, tested it in real UK gardens, and use it ourselves. It is the only receiver we recommend — and the only one we can provide direct setup support for. Multi-band L1+L2+L5 tracking gives centimetre accuracy with RTK corrections, and it remains robust near garden walls, fences, and tree cover where cheaper single-band receivers struggle. Affordable, compact, and works straight out of the box for homeowners.
View NANO Helix RTK on DataGNSS →Optional Add-ons
The kit comes ready to use with the Smart Helix antenna for standard boundary-finding. Two optional upgrades are available for more demanding survey work:
| Frequencies | GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, Galileo E1/E5a/E5b |
| LNA gain | 30 ±2 dB |
| Size | Φ28 × 58.5 mm — pocket-sized |
| Weight | ≤17 g |
| Connector | SMA |
The standard antenna supplied with the kit. Suitable for most residential boundary-finding where you have reasonable sky visibility. Lightweight and easy to hold in hand or attach to a pole.
View Smart Helix Antenna on DataGNSS →| Frequencies | L1/L2/L5/L6 — GPS, BDS, GLONASS, Galileo, QZSS |
| Phase centre error | <±2 mm |
| LNA gain | 32.0 ±2 dB |
| Ground plane | 150 mm (reduces multipath interference) |
| Size | D150 mm × H58.4 mm |
| Weight | 400 g |
| Waterproof | IP67 |
| Connector | TNC (comes with 1.5 m TNC–SMA cable) |
The professional-grade upgrade. The 150 mm ground plane dramatically reduces multipath signals from nearby walls, fences, and buildings — the main source of error in UK residential boundary surveys. Recommended when you need the most reliable RTK fix in challenging environments or when documenting a boundary dispute.

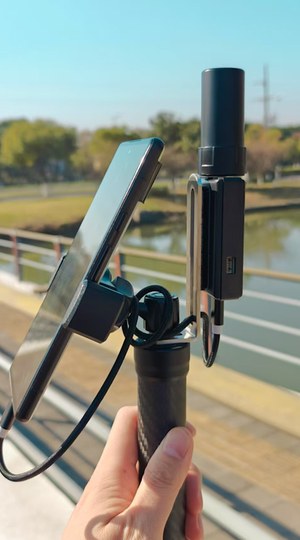

View AT400 Antenna on DataGNSS →For customers who need to collect boundary data into GIS software — or who want a field-ready handheld setup — DataGNSS offers a surveying & mapping kit built around the same NANO RTK Receiver. It includes a handheld bracket, OTG cable for direct tablet/phone connection, and 3M adhesive for attaching the receiver to an iPad.
Compatible software
- SW Maps (Android & iOS)
- Mapit GIS (Android)
- QField (Android & iOS)
Kit includes
- NANO RTK Receiver
- RTK Helix antenna
- USB-C cable + OTG cable
- 6P connector cable + 3M tape
- Handheld accessories
Device compatibility
- Android — USB serial or Bluetooth
- iPhone/iPad — Bluetooth BLE
- Desktop Chrome/Edge — USB serial (BoundaryFinder /preview)
Why Use an External GNSS Receiver?
A GNSS receiver paired via Bluetooth to a smartphone provides live sub-metre positioning when walking to boundary corners.
Your smartphone GPS is good enough for most boundary-finding tasks — modern phones achieve 1–3 metre accuracy in open conditions. But when you’re looking for a buried boundary marker, trying to locate where a fence should sit relative to the registered boundary position, or standing in the middle of a rural field with no reference points, that 2–3 metre margin becomes a large area to search.
An external GNSS (Global Navigation Satellite System) receiver connects to your phone via Bluetooth and replaces the phone’s internal GPS antenna with a purpose-built one, often combining signals from multiple satellite constellations and using dual-frequency technology to dramatically reduce positioning error.
| 📱 Smartphone GPS | 📡 DataGNSS NANO Helix RTK | |
|---|---|---|
| Standalone accuracy | 1–3 m | Sub-metre (<1.0 m SBAS) |
| With RTK corrections | — not supported | 1–3 cm ✓ |
| Typical search circle | ~5–6 m diameter | <5 cm with RTK |
| Works near walls & fences | Degrades significantly | Robust (L1+L2+L5) |
| Price | Already own | £80–£150 |
Key Advantage: Centimetre Accuracy on Every Corner
Whether you use BoundaryFinder on a desktop or OsmAnd / SW Maps on your phone, the DataGNSS receiver provides the same centimetre RTK accuracy. Every registered boundary corner is a navigation target — walk directly to each one without guessing.
How It Works With BoundaryFinder
There are two ways to use your GNSS receiver — one for laptops and desktops, one for smartphones in the field:
💻 Option A — Live in BoundaryFinder (Laptop or Desktop)
BoundaryFinder uses the Web Serial API to read NMEA-0183 location sentences directly from your GNSS receiver in Chrome or Edge, with no app installation required:
- Pair your GNSS receiver via Bluetooth — a one-time step in your computer’s Bluetooth settings. The receiver appears as a Bluetooth serial device.
- Open your BoundaryFinder report in Chrome or Edge on your laptop or desktop — use the link from your confirmation email.
- Click “Connect GNSS Device” on the preview page. Chrome shows your paired Bluetooth devices — select your GNSS receiver.
- Your live position appears on the boundary map with real-time distance and compass bearing to each marked corner.
Desktop Only — Not Supported on Smartphones
The Web Serial API works in Chrome and Edge on desktop only (Windows, macOS, Linux, ChromeOS). It does not work on any smartphone browser — including Chrome for Android or Safari on iPhone. For smartphone use, see Option B below.
📱 Option B — OsmAnd or SW Maps (Smartphone)
For most people, using a free navigation app on your phone is the most practical solution when you’re out in the field. Both OsmAnd and SW Maps support external GNSS receivers as a Bluetooth GPS source and can display GPX waypoints for navigation:
- Pair your GNSS receiver via your phone’s Bluetooth settings.
- In OsmAnd or SW Maps, set the DataGNSS receiver as your external GPS source — it replaces your phone’s built-in GPS for the session.
- Download the GPX file from your BoundaryFinder report. This contains all your boundary corners as named waypoints.
- Load the GPX into OsmAnd or SW Maps. Your boundary corners appear on the map — navigate to each one with centimetre RTK accuracy.
Which Option Should I Choose?
If you want to review the boundary map on a screen before heading outside, use Option A on a laptop. For walking the boundary in the field, Option B is more practical — your phone is easier to carry, and OsmAnd and SW Maps are both free to download.
What You’ll See on the Preview Page
When connected via Option A (desktop Chrome or Edge), your BoundaryFinder preview page shows four live data overlays:
A blue marker shows your real-time location on the boundary map as you walk.
Live distance in metres and compass direction to each boundary corner.
Connection state, satellite count, and accuracy estimate — so you know when to trust your position.
Every registered boundary point on one map — tap any to set as your navigation target.
Frequently Asked Questions
No. Your smartphone GPS works well for most residential boundaries. A GNSS receiver is an optional upgrade for customers who want sub-metre accuracy — especially useful in open fields, rural land, or when locating buried boundary markers.
The live browser connection (Option A) uses the Web Serial API, which works in Chrome and Edge on desktop only — it does not work on any smartphone browser, including Android Chrome or iPhone Safari. For smartphones, use the free apps OsmAnd or SW Maps with the GPX file from your report (Option B).
On a laptop or desktop (Option A), no apps are needed — everything runs in Chrome or Edge. On a smartphone (Option B), the free apps OsmAnd or SW Maps let you pair the receiver as your GPS source and navigate to your boundary corners using the GPX file from your report.
Yes — any receiver that outputs NMEA-0183 sentences over Bluetooth SPP or USB is compatible. This includes devices from Garmin, Bad Elf, Trimble, Leica, u-blox, and many others.
The coordinates are derived from HM Land Registry INSPIRE cadastral data, georeferenced against Ordnance Survey mapping. They represent the official registered general boundary position. Your GNSS receiver helps you walk to those coordinates more precisely — it does not affect the accuracy of the coordinates themselves.
The DataGNSS NANO Helix RTK is the only receiver we recommend because it achieves centimetre RTK accuracy at a homeowner price point (£80–£150). Recommending a single device means we can provide direct, accurate setup support. We don’t accept sponsorships or commissions.
Your GNSS receiver pinpoints you. Your BoundaryFinder report marks every registered boundary corner. Together, they let you walk to within centimetres of the registered general boundary position — no surveyor required for routine boundary-finding.
Using a GNSS receiver in the field for property boundary finding

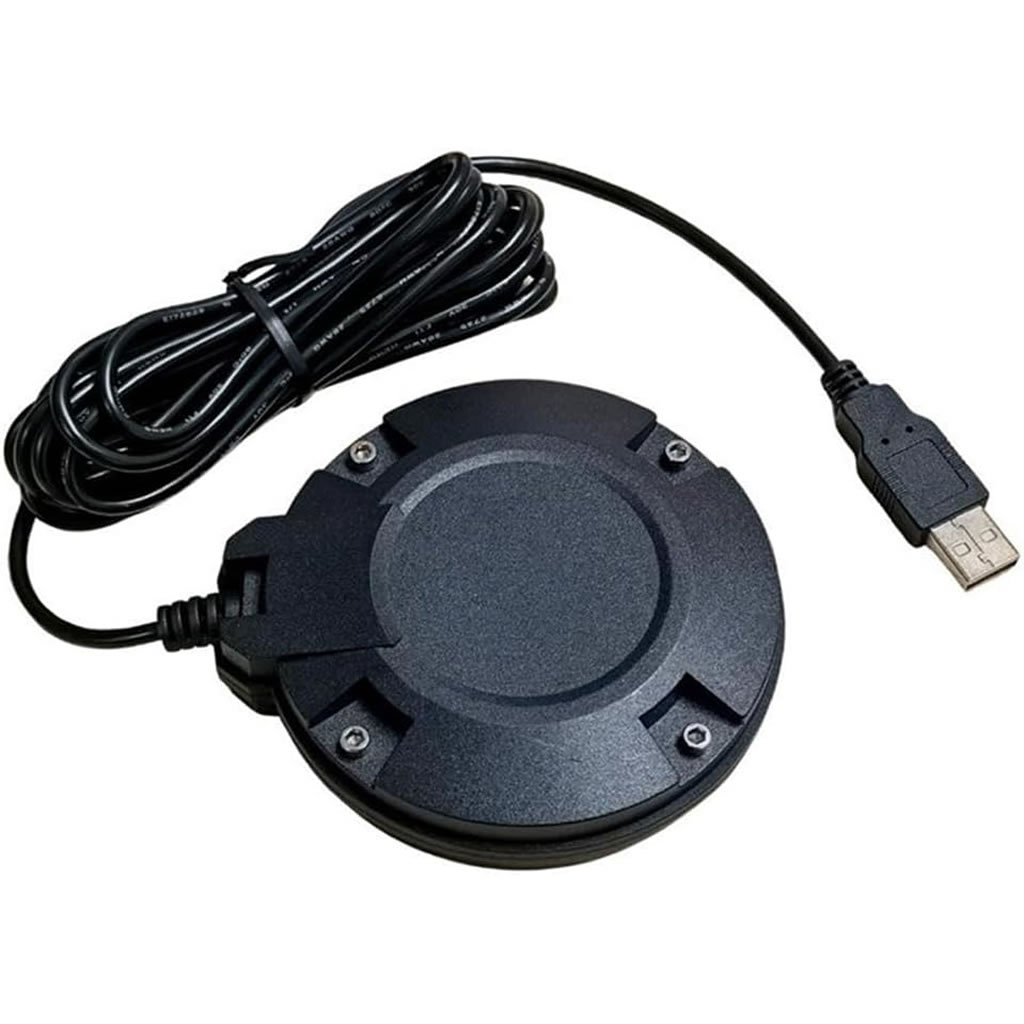

GM906BT Dual-Frequency GNSS Receiver

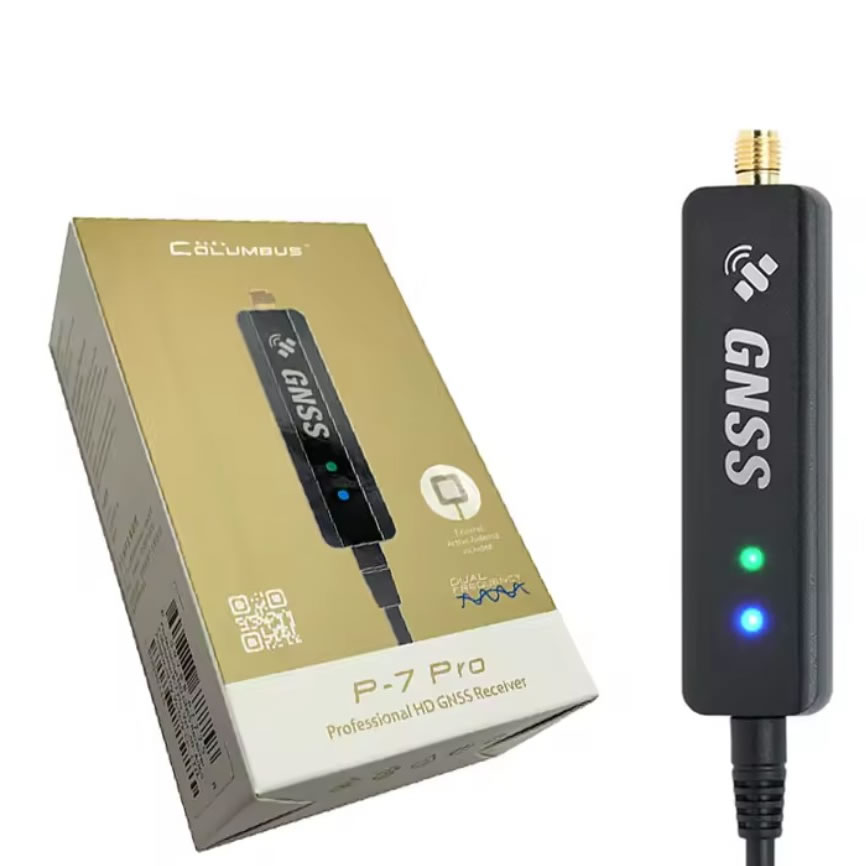

Columbus P-7 Pro Multi-GNSS Receiver
